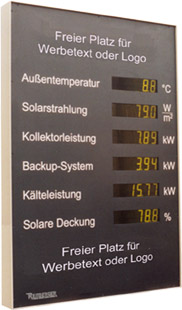

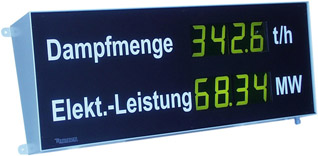

Indicated value displays: Series "AFN"; Out/- Indoor, 60mm, 100mm and 150mm sign height / LCD

The large displays of the AFN series are suitable specially for the indication of numerical measurements in the Out- and Indoor area .The at display series "AFN" used LCD technology (Reflective/Transflective) guarantees a very high life time (approx. 200.000h) and best reading comfort due to the clear script contours
They are deliverable in single- and multiline execution with respectively 2 to maximum 12 digits. For the drive
of the display are following interfaces available:

- Serial: RS232,RS 485 , Profibus DP SLAVE and Ethernet TCP/IP; Others on inquiry
- Analog: 0(4) - 20mA 12 Bit A/D, 0 - 10VDC 10 bit, no potential separation
For types and order number see broadsheet.
